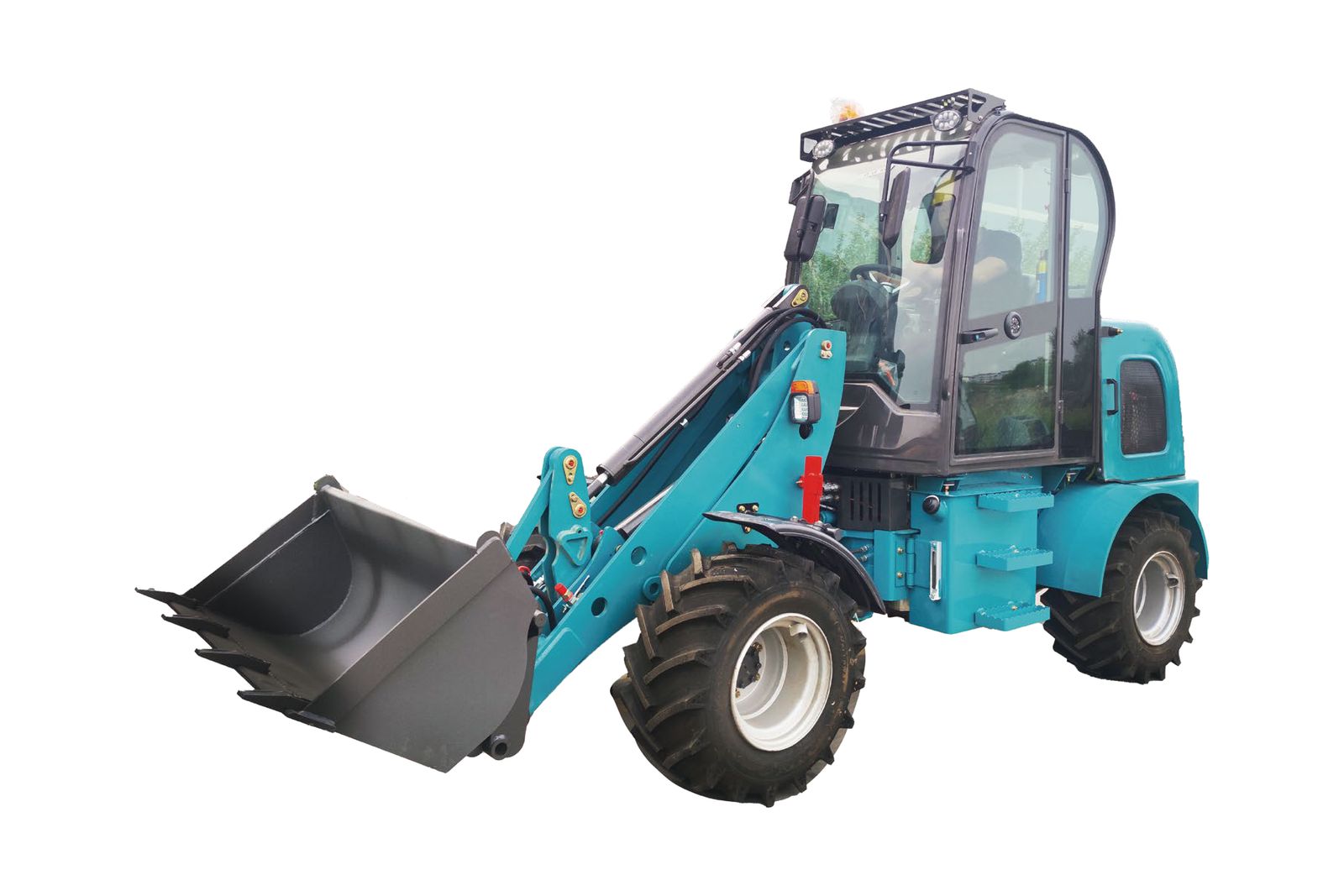

Wheel Loaders
Configured for your market: engine, tyres, attachment package and documentation are set on the order rather than fixed at the factory.
Factory test report · operator and parts manual · starter kit of wear parts · CE documentation on request · FOB Qingdao, or door to door if you prefer.
Specifications
| Engine | |
|---|---|
| Engine make and model | Xinchai 3B11Y51P254 |
| Rated power (ISO 14396) | 18.5 kW |
| Emission standard | Euro 5 (EPA Tier 4 optional) |
| Certification | |
| Performance | |
| Rated payload | 1000 kg |
| Bucket capacity - heaped | 0.5 m³ |
| Operating weight | 2500 kg |
| Breakout force | |
| Static tipping load - full turn | |
| Max travel speed | 20 km/h |
| Working range | |
| Max dump height | 2200 mm |
| Dump reach | |
| Dimensions | |
| Overall length | 4500 mm |
| Overall width | 1600 mm |
| Overall height | 2600 mm |
| Turning radius over bucket | |
| Tyre size | 31x15.5-15 |
| Capacities | |
| Fuel tank | 60 L |
| Configuration | |
| Standard and optional equipment | Standard: enclosed cab with heater and reversing camera, hydrostatic drive (piston pump and motor), lift height 3,500 mm. Optional: Kubota D1703 or V1505 engine (EPA Tier 4 / Euro 5), 400/60-15.5 tyres. Also available with torque-converter drive: Changchai ZN390Q, 25 kW, 2 forward / 2 reverse gears. |
